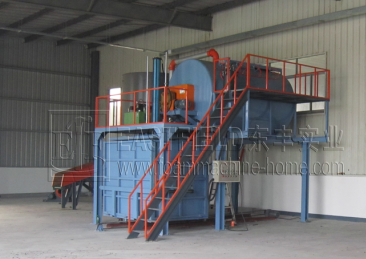

| Foam rebonding machine-(Foam rebonded machine composite of shredder,mixing,,pressing,steam,scale silo stations)
Model:EFSR-10W
Model:EFSR-10WO(rebonding foam machine with scale silo aboved the mixing tank)

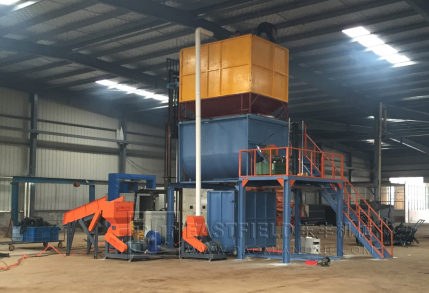

 foam rebonding machine with scale yellow silo as aboved +shredder in orange

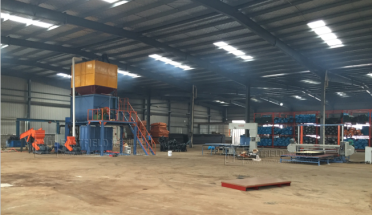

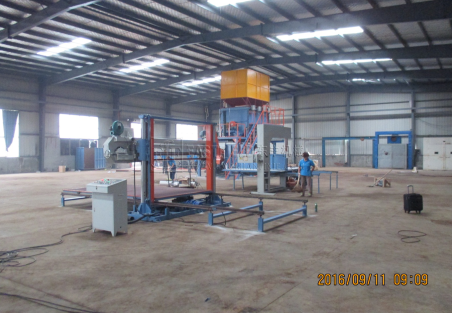

 foam rebonding machine with vertical cutting+horizontal splitting+shredder as necessary equipments for whole plant
Description:
Foam rebonded machine/foam rebonding machine : ReboTec - recycling of trimmings
"ReboTec is a process, in which slab stock waste and trimmings are comminuted into flakes, then compressed into PU-bonded rectangular or cylindrical blocks that are subsequently cut to size. "
Foam grinding:
" Grinding is a recycling process, in which foam trimmings are converted into loose flakes(by our HHRG-22/11).These are then ground into a powder through shear action in a roller mill. Larger particles are filtered and then fed to the mill until all particles fall into the specified < 0.2 mm fines fraction. The regrind powder can then be put in intermediate storage containers (silos).
The performance data of a crushing system for large-scale industrial use shown on the left are impressive: upto300 kg flakes are ground into powder of lessthan0.2 mm grain size every hour. The on-line metering unit feeds up to 70 kg of powder per minute into the polyol stream. With a second metering unit running in parallel, up to 140 kg of powder per minute can be processed. "
rebonding process
Foam rebonded machine"The foam trimmings are shredded into flakes before being wetted with a polyurethane adhesive, then blended in a mixer and discharged into a mould. Since the loose flakes have a significantly lower bulk density than the finished block, the flakes are compressed inside the mould. Rebounded foam is subsequently formed by adding hot steam and pressure. "
Broad density range
"The density of the finished blocks ranges between about 80 and 120 kg/m3. Block densities of up to 500 kg/m3 are feasible with a suitable flake preselection and special equipment"
Advantages:
Production of a new, profitable high-quality product
Environmentally compatible recycling technology
Almost full re-use of all trimmings obtained in slabstock manufacturing
Homogeneous integration of PU flakes into the foam cell structure
specification data |
EFSR-10W (with system for steam) |
EFSR-10WO (without system for steam) |
flakes blending mixer cubage |
10m3 |
10m3 |
total power |
13KW |
13KW |
mould tanks |
L2050*W15508H1000 |
L2050*W15508H1000 |
machine external size |
L6000*W4000*H5200 |
L6000*W4000*H5200 |
speed of mixer |
40r/min |
40r/min |
Steam |
control & mould,machine design for steam |
NO |
|
